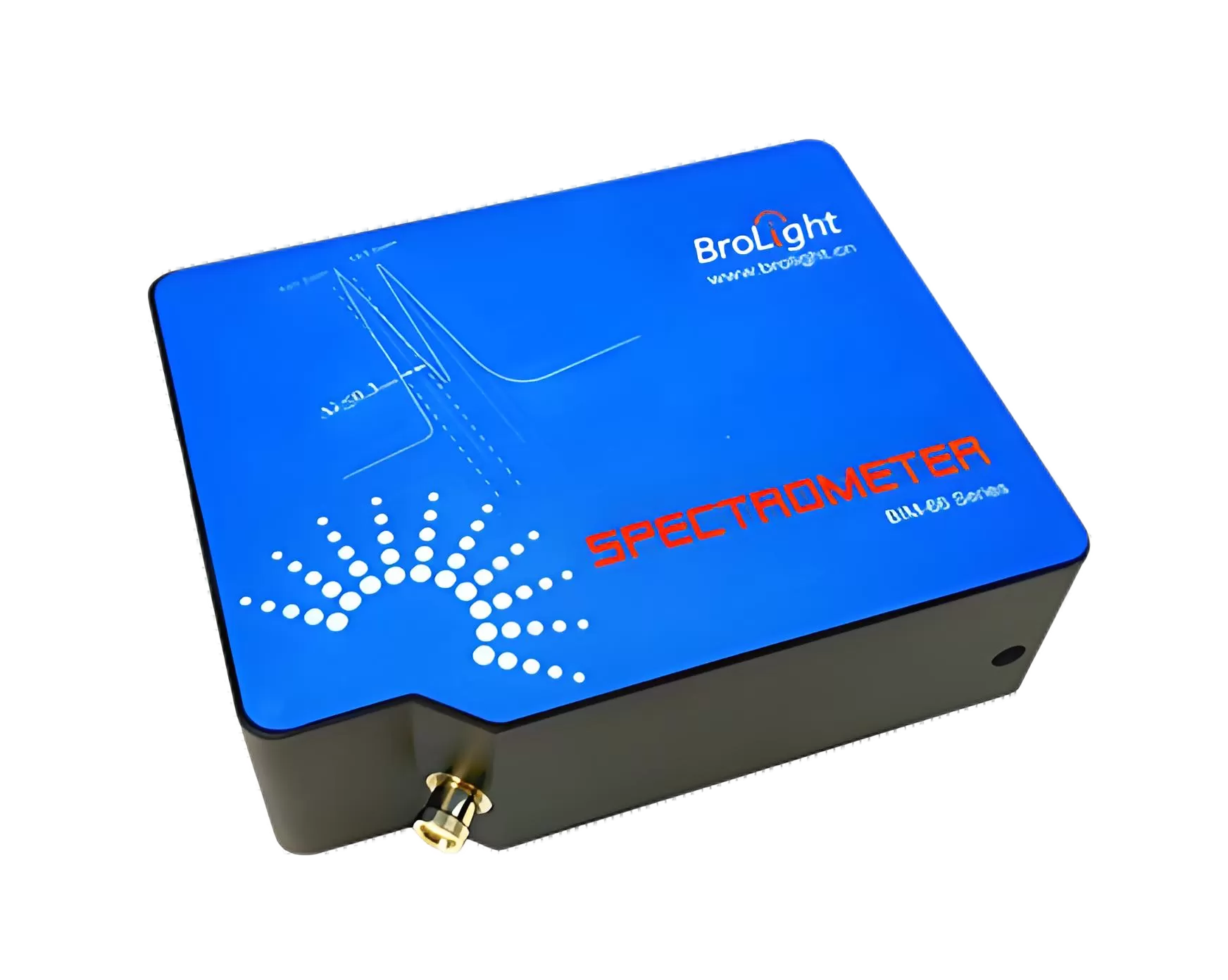

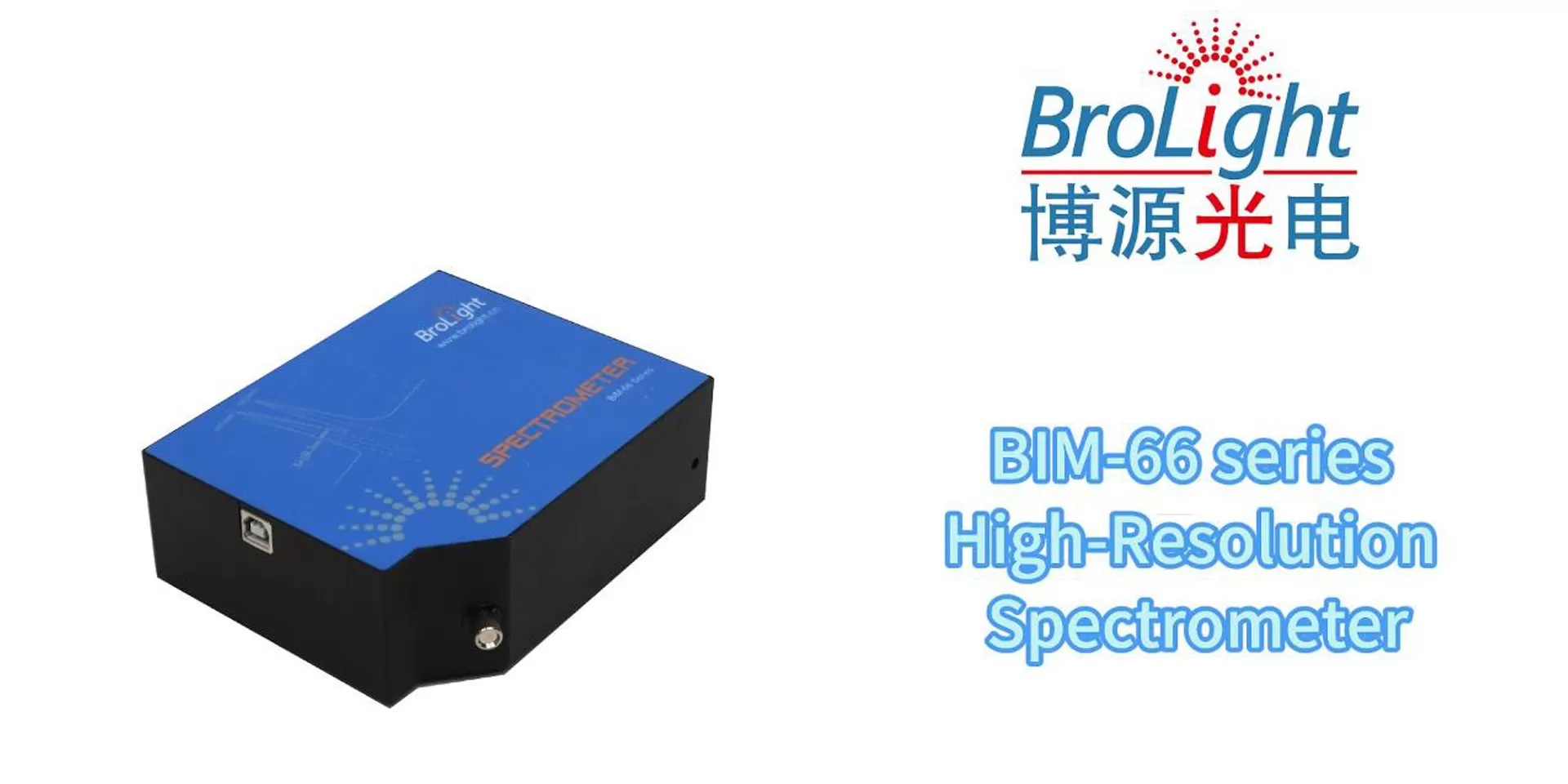

BIM-6602A serisi

Yüksek çözünürlüklü spektrometre

Dalga boyu aralığı

180nm-1100nm isteğe bağlı

Çözünürlük

Optimal ~ 0.08nm

Fiber bağlayıcı

SMA905

DetectorType

Hamacmos S11639 doğrusal CMOS

Dedektör piksel

2048 piksel, her piksel 14μm × 200μm

Gürültü oranına sinyal

600:1

A/D çözünürlüğü

16 bit

Entegre zaman

0.5ms-65s

Dinamik aralık

10000:1

Tetik modeli

Normal mod, yazılım, donanım, senkronizasyon tetikleyici

Güç tüketimi

250mA,5VDC

Çalışma sıcaklığı

5 ℃-35 ℃(25 ℃ önerilir)

Iletişim arayüzü

USB2.0(12Mbps)

RS232(115200bps)

İşletim sistemi

Win XP,Win7,Win8,Win10

Doğrusallık

> 99%

Güç kaynağı

USB

Boyut

140mm x 110mm x 46mm

Ağırlık

0.7Kg

1

Spektrometre

1

2

USB kablosu

1

3

Kalibrasyon raporu (yazılım ve el kitabının indirilmesi için QRCode)

1

4

Ambalaj kutusu

1

BIM-6602A-01

BIM-6602A-01-S03L00F00G14

200-420 nm

~ 0.3 nm

BIM-6602A-02

BIM-6602A-02-S01L00F06G11

200-1000 nm

~ 0.8 nm

BIM-6602A-03

BIM-6602A-03-S02L00F05G12

380-900 nm

~ 0.8 nm

BIM-6602A-04

BIM-6602A-04-S02L00F00G23

305-595 nm

~ 0.3 nm

BIM-6602A-05

BIM-6602A-05-S02L00F08G08

900-1000 nm

~ 0.15 nm

BIM-6602A-05-S02L00F00G08

900-1000 nm

~ 0.15 nm

BIM-6602A-05-S02L01F08G08

900-1000 nm

~ 0.15 nm

BIM-6602A-05-S03L01F08G08

900-1000 nm

~ 0.3 nm

BIM-6602A-06

BIM-6602A-06-S01L00F00G26

600-1100 nm

~ 0.6 nm

BIM-6602A-06

BIM-6602A-06-S01L00F08G26

600-1100 nm

~ 0.6 nm

BIM-6602A-07

BIM-6602A-07-S02L00F05G25

330-770 nm

~ 0.7 nm

BIM-6602A-08

BIM-6602A-08-S02L00F00G10

500-720 nm

~ 0.2 nm

BIM-6602A-08

BIM-6602A-08-S02L00F05G10

500-720 nm

~ 0.2 nm

BIM-6602A-09

BIM-6602A-09-S01L01F00G27

800-1000 nm

~ 0.1 nm

BIM-6602A-09

BIM-6602A-09-S01L01F08G27

800-1000 nm

~ 0.1 nm

BIM-6602A-10

BIM-6602A-10-S02L00F00G08

250-400 nm

~ 0.15 nm

BIM-6602A-11

BIM-6602A-11-S02L00F00G10

390-610 nm

~ 0.2 nm

BIM-6602A-12

BIM-6602A-12-S01L00F06G11

300-1100 nm

~ 0.8 nm

BIM-6602A-13

BIM-6602A-13-S02L00F05G12

340-850 nm

~ 0.8 nm

BIM-6602A-14

BIM-6602A-14-S01L01F08G08

795-905 nm

~ 0.1 nm

BIM-6602A-15

BIM-6602A-15-S02L01F08G08

1005-1080 nm

~ 0.15 nm

BIM-6602A-16

BIM-6602A-16-S02L00F08G08

750-870 nm

~ 0.15 nm

BIM-6602A-17

BIM-6602A-17-S02L00F00G30

250-350 nm

~ 0.1 nm

BIM-6602A-18

BIM-6602A-18-S02L00F00G30

350-450 nm

~ 0.1 nm

BIM-6602A-18-S01L02F00G30

350-450 nm

~ 0.08 nm

BIM-6602A-19

BIM-6602A-19-S01L01F08G30

660-734 nm

~ 0.08 nm

BIM-6602A-20

BIM-6602A-20-S03L00F00G14

180-400 nm

~ 0.3 nm

BIM-6602A-21

BIM-6602A-21-S02L00F08G08

580-715 nm

~ 0.15 nm

BIM-6602A-22

BIM-6602A-22-S02L00F10G08

510-650 nm

~ 0.15 nm

BIM-6602A-23

BIM-6602A-23-S02L00F06G25

250-650 nm

~ 0.7 nm
